Brand Name : SUNCAR
Model Number : 31Y1-18490 HYUNDAI R360LC-7, R360LC-7A, R370LC-7
CertifiC.A.Tion : ISO9001
Place of Origin : CHINA(MAINLAND)
MOQ : Trial order acceptable
Price : Negotiation
Payment Terms : Western Union, L/C, T/T, , D/A, D/P
Supply Ability : 1000 set per week
Delivery Time : 3-5 days after payment received(public holiday excluded)
Packaging Details : PP bag inside, carton box outside
Product name : Bucket Cylinder Seal Kit
Warranty : Unavailable
Part No. : 31Y1-18490, 31Y118490
Material : PU, Rubber, PTFE, NBR, HNBR, ACM, VMQ
Sample : Available
Condition : New, genuine new
Bucket Cylinder Seal Kit 31Y1-18490 31Y118490 Hyundai R360LC-7 R370LC-7 Replacement Service Kits
Product Name | Bucket Cylinder Seal Kit |
Part Number | 31Y1-18490, 31Y118490 |
Model | 7-SERIES CRAWLER EXCAVATOR R360LC-7, R360LC-7A, R370LC-7 Hyundai |
Material | PU, Rubber, PTFE, NBR, HNBR, ACM, VMQ |
Place of Origin | China(Mainland) |
Brand name | SUNCAR |
Packing | PP bag inside, carton box outside |
Shipping Mode | By air, by sea, by express(FedEx, UPS, DHL, TNT, etc.) |
Payment Terms | Western Union, Paypal, T/T, Transfer |
CertifiC.A.Tion | ISO9001 |
Warranty | Unavailable |
Customized | OEM & ODM are welcomed |
C.A.Tegory Group | Hydraulic cylinder seal kit, excavator service kits |
Condition | New, genuine new |
Sample | Available |
Applicable Industries | Building material shops, machinery repair shops, retail, construction work... |
Feature | High sealing performance/ wear resistance |
AppliC.A.Tion | Bucket |
Packing And Shipping:
Other Products We Can Offer You:
Oil Seal
O-Ring
Loader Seal Kit
Floating Seal
Hydraulic Breaker Seal Kit
Excavator Hydraulic Parts
Control Valve Seal Kit
Swing Motor Seal Kit
Crankshaft Rear Seal
Crankshaft Front Seal
Track Adjuster Seal Kit
Center Joint Seal Kit
(Main) Control Valve Seal Kit
Blade Lift/Tilt/Steering Cylinder Kit
Related Parts:
Pos. | Part No | QTY | Product Name |
*. | 31NA-60110 | [1] | CYLINDER ASSEMBLY |
*. | 31NA-60111 | [1] | BUCKET CYLINDER |
*-1. | 31Y1-18460 | [1] | BUCKET CYLINDER SUB |
1 | 31Y1-08700 | [1] | TUBE ASSY |
2 | 31Y1-18970 | [1] | ROD ASSY |
3 | 31Y1-08770Y | [1] | GLAND |
4 | S732-105040 | [1] | BUSHING |
5 | Y191-112000 | [1] | RING-SNAP |
K6. | Y220-105011 | [1] | SEAL-ROD |
K7. | Y180-105120 | [1] | RING-BACK UP |
K8. | Y240-105013 | [1] | RING-BUFFER |
K9. | Y110-105011 | [1] | WIPER-DUST |
10 | Y190-121000 | [1] | RING-SNAP |
K11. | Y320-105000 | [1] | RING-WEAR |
K12. | S631-140004 | [1] | O-RING |
K13. | S641-140003 | [1] | RING-BACK UP |
14 | 31YC-23060 | [1] | RING-CUSHION |
15 | 31Y1-08780 | [1] | PISTON |
K16. | S632-090004 | [1] | O-RING |
K17. | S642-090003 | [2] | RING-BACK UP |
K18. | Y420-150000 | [1] | SEAL-PISTON |
K19. | Y310-150100 | [2] | RING-WEAR |
K20. | Y440-150000 | [2] | RING-DUST |
21 | 31YC-66071 | [1] | WASHER-LOCK |
22 | 31YC-61153 | [1] | NUT-LOCK |
23 | S109-240904 | [8] | BOLT-SOCKET |
29 | 31YC-11160 | [2] | BUSHING-PIN |
30 | Y000-090000 | [4] | SEAL-DUST |
24 | 31Y1-08790 | [2] | BAND ASSY |
24 | 31Y1-22680 | [2] | BAND ASSY |
24-1. | 31Y1-08800 | [1] | BAND SUB ASSY |
24-1. | 31Y1-22690 | [1] | BAND SUB ASSEMBLY |
24-2. | 31YC-31230 | [1] | BAND |
24-3. | 31YC-37040 | [1] | CLAMP-PIPE |
24-3. | 31YC-37050 | [1] | CLAMP-PIPE |
24-4. | S015-120452 | [4] | BOLT-HEX |
24-4. | S015-120452 | [2] | BOLT-HEX |
24-5. | S411-100002 | [4] | WASHER-SPRING |
24-5. | S411-120002 | [4] | WASHER-SPRING |
24-6. | S015-120502 | [2] | BOLT-HEX |
25 | 31Y1-18920 | [1] | PIPE ASSY-R |
25 | 31Y1-22700 | [1] | PIPE ASSY-R |
26 | 31Y1-18930 | [1] | PIPE ASSY-B |
26 | 31Y1-22710 | [1] | PIPE ASSY-B |
K27. | Y171-024004 | [2] | O-RING |
28 | S107-120554 | [8] | BOLT-SOCKET |
28 | S107-120604 | [8] | BOLT-SOCKET |
K. | 31Y1-18490 | [1] | SEAL KIT |
Product Show:
![]() |

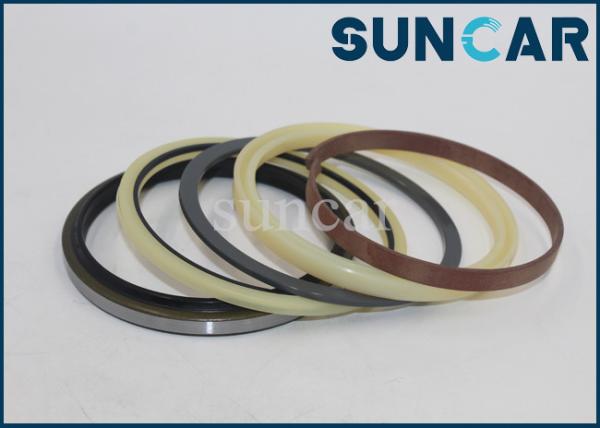

Bucket Cylinder Seal Kit 31Y1-18490 31Y118490 Hyundai R360LC-7 R370LC-7 Replacement Service Kits Images |
